Název | Popis | Hodnota |
---|---|---|

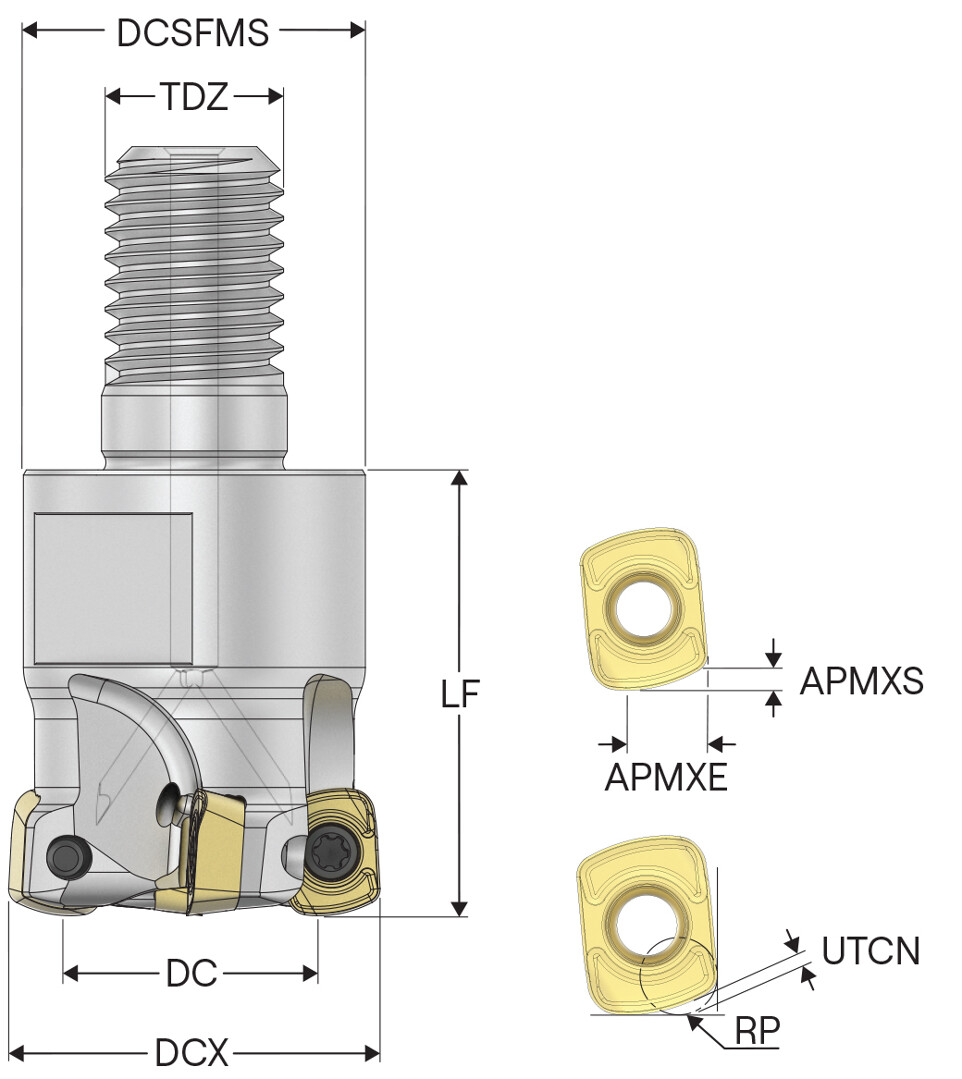

APMX | depth of cut maximum | 0.8 mm |
APMXE | depth of cut maximum in feed direction end | 4.5 mm |
APMXS | depth of cut maximum in feed direction side | 0.8 mm |
Cmax | helical interpolation hole diameter maximum | 30.0 mm |
Cmin | helical interpolation hole diameter minimum | 23.5 mm |
CMTQ | connection mounting torque | 25.0 Nm |
DC | cutting diameter | 7.5 mm |
DCSFMS | Contact surface diameter machine side | 13.5 mm |
DCX | Maximální řezný průměr | 16.0 mm |

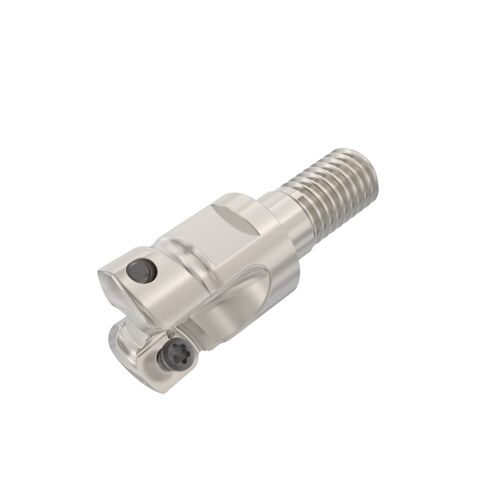

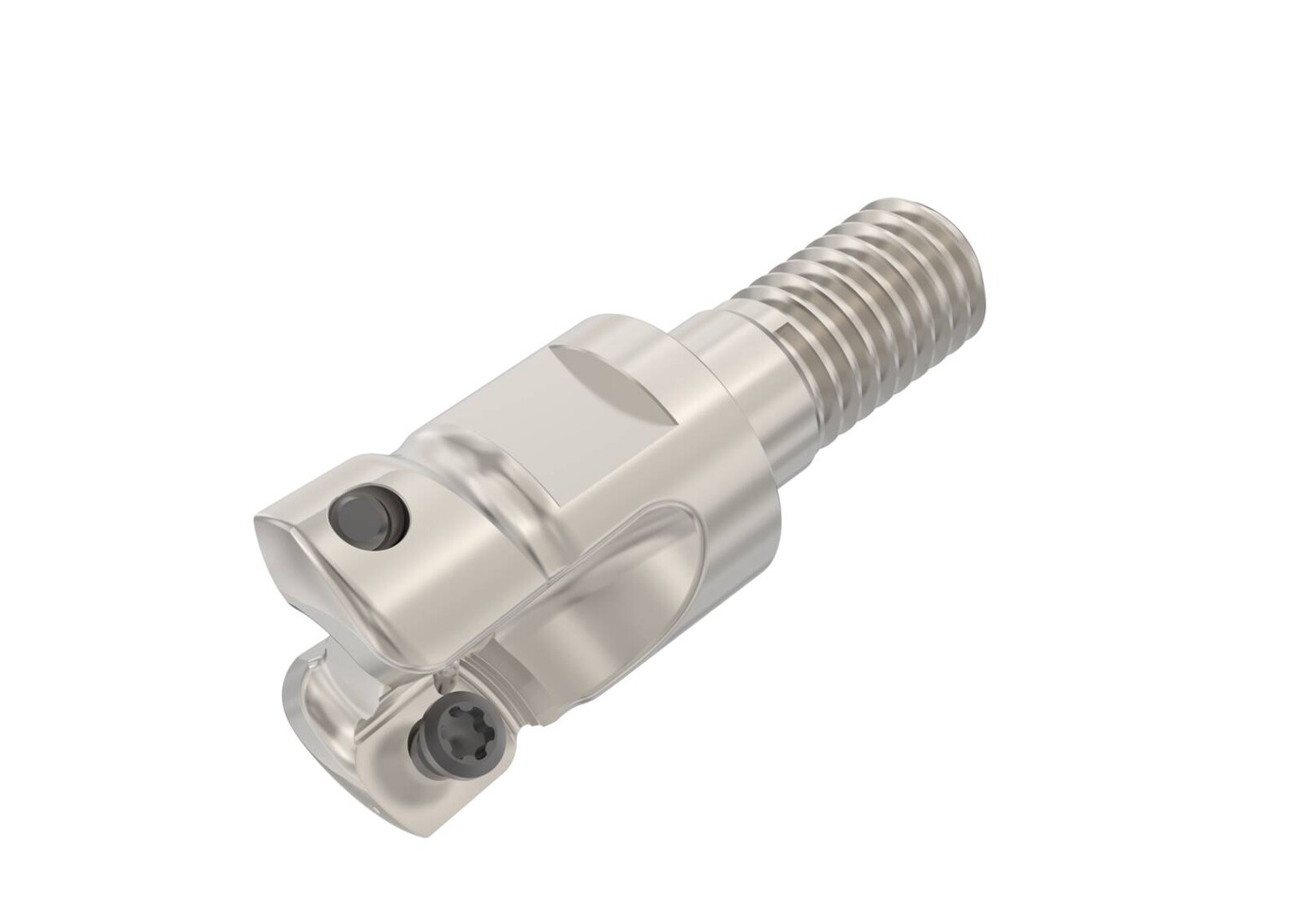

Označení | Produktové označení | R217.21-0816.RE-LP06.2A |
Označení Ansi | Označení produktu ANSI | R217.21-0816.RE-LP06.2A |
GAMF | rake angle radial | -5.0 deg |
GAMP | Axiální úhel čela | 4.0 deg |
ISYC | item style code | 307-01 |
Produktové číslo | Číslo položky | 02789697 |
LF | Funkční délka | 20.0 mm |
RMPX | ramping angle maximum | 5.0 deg |
RP | programming radius | 1.8 mm |
RPMX | Rotational speed maximum | 39000 rpm |
Druh stopky | Shanktype | Combimaster |
SW | wrench size | 11 |
TDZ | Velikost závitu | M8 |
UTCN | Uncut thickness | 0.45 mm |
Weight | Net weight | 0.332 kg |
ZEFP | Počet efektivních periferních břitů | 2 |
ZNP | Peripheral edges in the tool | 2 |
Výrobce | SECO |
