Název | Popis | Hodnota |
---|---|---|
APMX | depth of cut maximum | 1.8 mm |
APMXE | depth of cut maximum in feed direction end | 10.0 mm |
APMXS | depth of cut maximum in feed direction side | 1.8 mm |
C | Depth of key way | 7.0 mm |
Cmax | helical interpolation hole diameter maximum | 124.0 mm |
Cmin | helical interpolation hole diameter minimum | 111.3 mm |
DC | cutting diameter | 48.3 mm |
DCB | connection bore diameter | 27.0 mm |
DCSFMS | Contact surface diameter machine side | 50.0 mm |
DCX | Maximální řezný průměr | 63.0 mm |

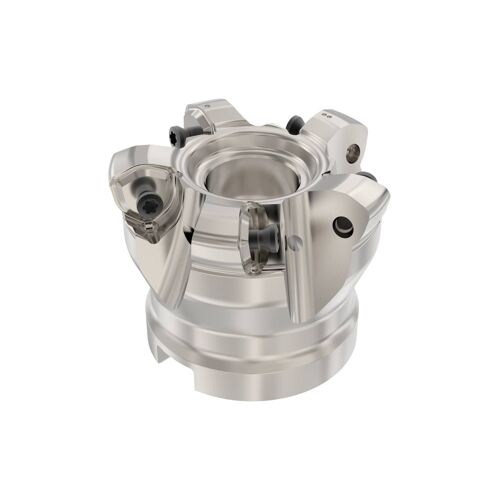

Označení | Produktové označení | R220.21-0063-R230.5A |
Označení Ansi | Označení produktu ANSI | R220.21-0063-R230.5A |
GAMF | rake angle radial | -13.0 deg |
GAMP | Axiální úhel čela | -6.5 deg |
ISYC | item style code | 308-01 |
Produktové číslo | Číslo položky | 02826553 |
KAPRS | tool cutting edge angle in feed direction side | 21.31 deg |
KWW | keyway width | 12.4 mm |
LF | Funkční délka | 50.0 mm |
RMPX | ramping angle maximum | 0.6 deg |
RP | programming radius | 3.32 mm |
RPMX | Rotational speed maximum | 10800 rpm |
Druh stopky | Shanktype | Arbor |
UTCN | Uncut thickness | 0.83 mm |
Weight | Net weight | 0.5104 kg |
ZEFP | Počet efektivních periferních břitů | 5 |
ZNP | Peripheral edges in the tool | 5 |
Výrobce | SECO |
