| Název | Popis | Hodnota |
|---|---|---|
| APMX | depth of cut maximum | 7.5 mm |
| APMXE | depth of cut maximum in feed direction end | 3.0 mm |
| APMXS | depth of cut maximum in feed direction side | 7.5 mm |
| C | Depth of key way | 4.9 mm |
| CNSC | coolant entry style code | 1 |
| CPDF | cutting pitch differential | 1 |
| CPDN | cutting pitch density | Coarse |
| CSP | coolant supply property | 1 |
| CTWS | Připojení - strana obrobku | XNEX0806 |
| CUTINT_MASTER | pocket seat code of the cutter | XNEX0806 |
| CXSC | coolant exit style code | 3 |
| DC | cutting diameter | 63.5 mm |
| DCB | connection bore diameter | 19.05 mm |
| DCSFMS | Contact surface diameter machine side | 47.0 mm |

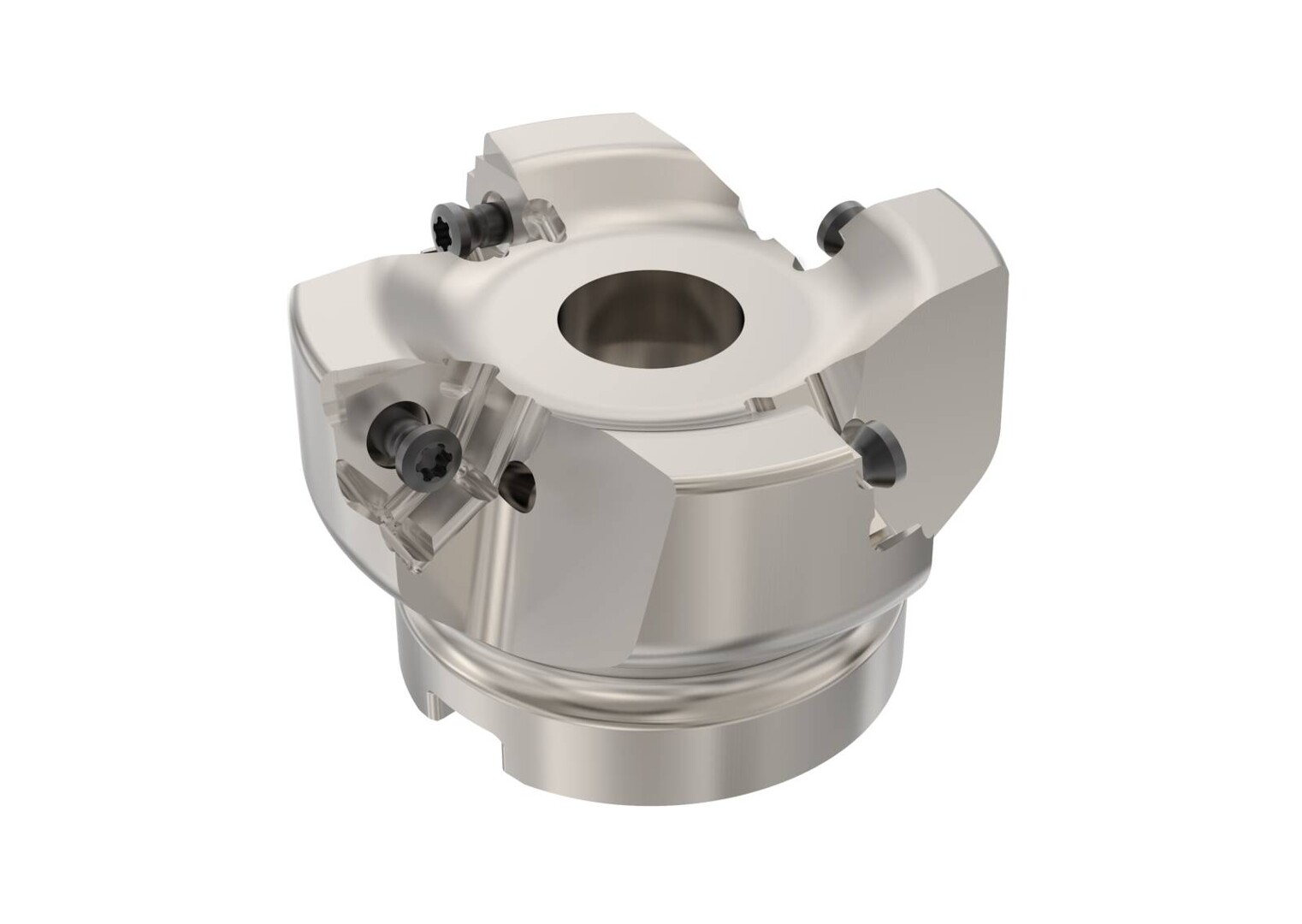

| Označení | Produktové označení | R220.96-02.50-08-4A |
| Označení Ansi | Označení produktu ANSI | R220.96-02.50-08-4A |
| GAMF | rake angle radial | -11.2 deg |
| GAMO | Ortogonální úhel čela | -11.2 deg |
| GAMP | Axiální úhel čela | -6.3 deg |
| ISYC | item style code | 308-02 |
| Produktové číslo | Číslo položky | 02642873 |
| KAPR | Úhel nastavení ostří nástroje | 90.0 deg |
| KAPRE | tool cutting edge angle in feed direction end | 90.0 deg |
| KAPRS | tool cutting edge angle in feed direction side | 90.0 deg |
| KWW | keyway width | 8.15 mm |
| LF | Funkční délka | 40.0 mm |
| MATERIAL | cutting item material type | Steel |
| RMPX | ramping angle maximum | 0.0 deg |
| RPMX | Rotational speed maximum | 9400 rpm |
| Druh stopky | Shanktype | Arbor |
| SURFTREAT | tool item surface treatment | Nickel Coated |
| Weight | Net weight | 0.6 kg |
| ZEFP | Počet efektivních periferních břitů | 4 |
| ZNP | Peripheral edges in the tool | 4 |
| Výrobce | SECO |
